Capacity
Up to 250 t/ h
-
Inlet opening
960 x 770 mm
-
Weight
28 t

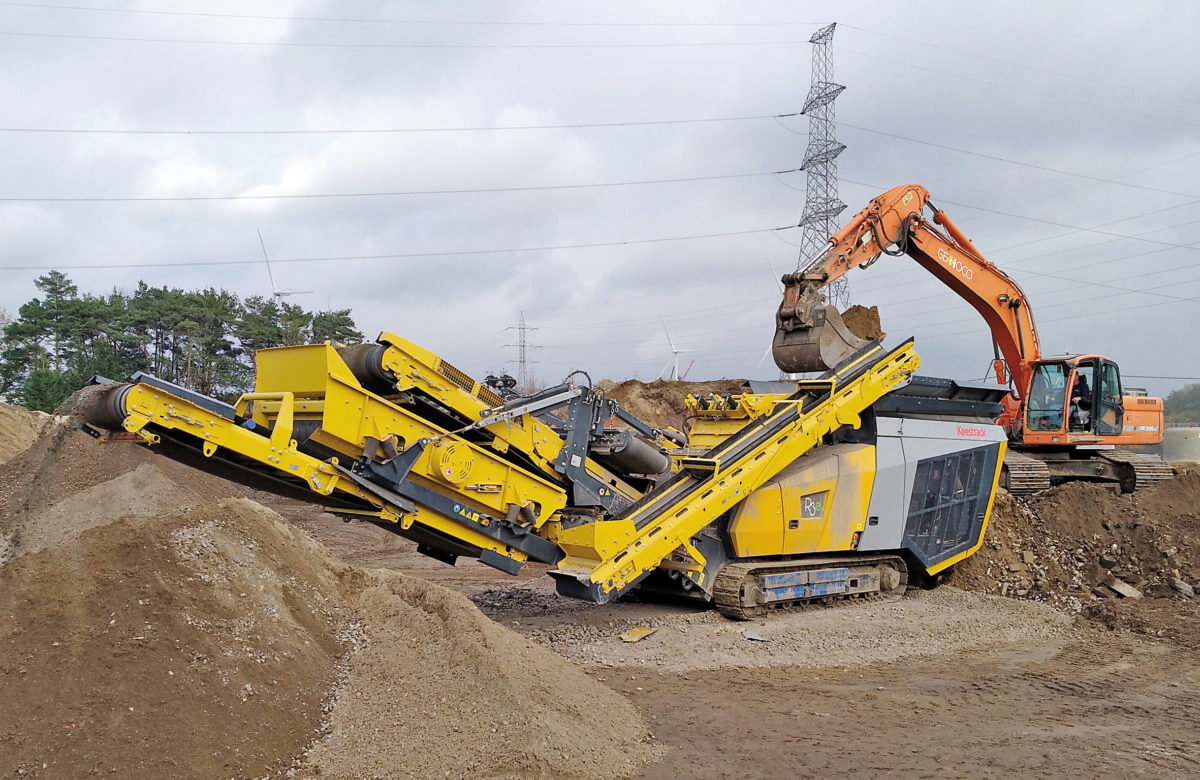

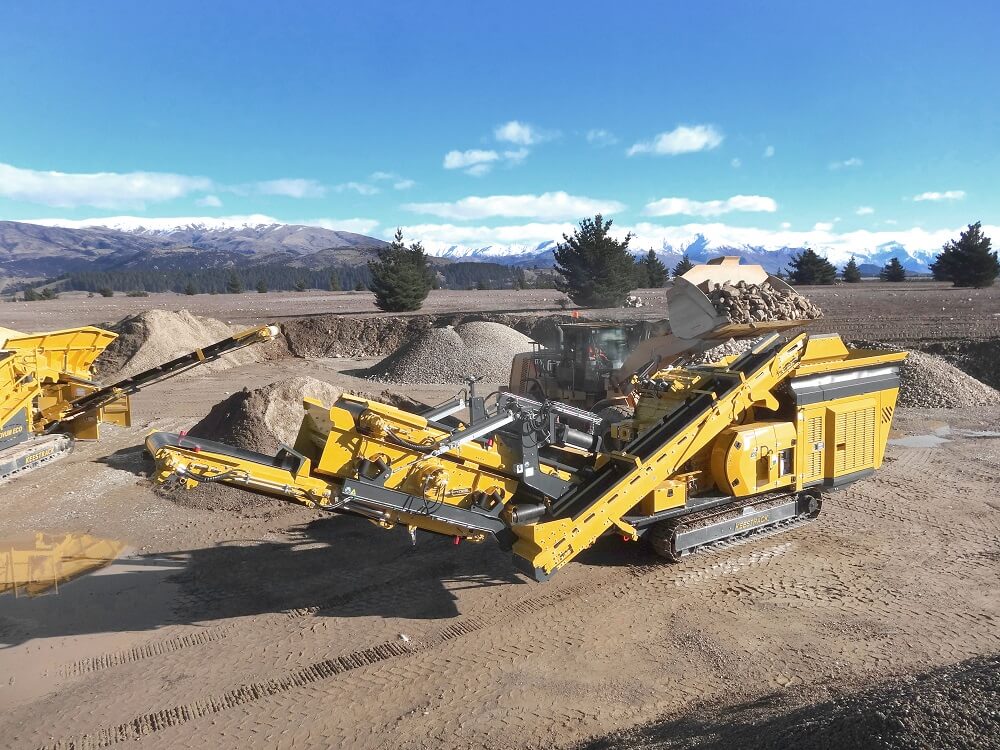

Jaw Crusher Keestrack R3e
Applications:
• Limestone and many other natural rock
• Concrete and landfill recycling
• Primary and secondary crushing
• Yard clean up
• Construction waste
• Demolition
• Quarrying and mining
• Gravel
• Asphalt
• Coal and others
-
Capacity – 3.5 м3
Wear lining – HB450
Feeding height – 3.100 mm
-
Dimension (width x length) – 920 x 3.700 mm
-
Screen type – Single deck
Dimension (width x length) – 920 x 1.200 mm
-
Inlet opening (width x height) – 960×770 mm
Rotor diameter – 1.100 mm
Rotor weight (without bearings) – 3.200 kg
Throughput capacity – Up to 250 t/ h
Drive – Direct via elastic coupling and transmission gear
-
Discharge height – 3.220 mm
Dimension (width x length) – 1.000 x 8.100 mm
Speed – 1,15 mIs adjustable
For transport – Hydraulically foldable
-
Dimension (width x length) – 400 x 3.310 mm
2 speeds – 1,1-2 km/h
-
Power – 260 kW/ 1.800 rpm
Fuel tank – 468 l
Hydraulic oil tank – 290 l
-
Type – PLC- IP67
Display – 7″ LCD
Controller – Remote control
-
Dimension (width x length) – 500 x 4.390 mm
Discharge height – 2.900 mm
For transport – Hydraulically Foldable
-
Screen Type – Single deck
Dimension (width x length) – 1.200 x 2.800 mm
After screen conveyor (width x length) – 500 x 6.500 mm
Fines conveyor (width x length) – 1.000 x 4.200 mm
Discharge height – 3.100 mm
-
Height adjustment – 150 – 345 mm
-
Spraying area – Crusher inlet and outlet
Water pump – 1,1 kW
Water consumption – 0,75 m3 /h
-
Flow capacity – 80 I/min
-
Type – Handheld, multi functions remote control
-
No. of lamps – 4 pieces
-
Length : 9.500 mm / 12.600 mm (with screen)
Height: 3.200 mm
Width : 2.540 mm
Weight : 28 t without options
