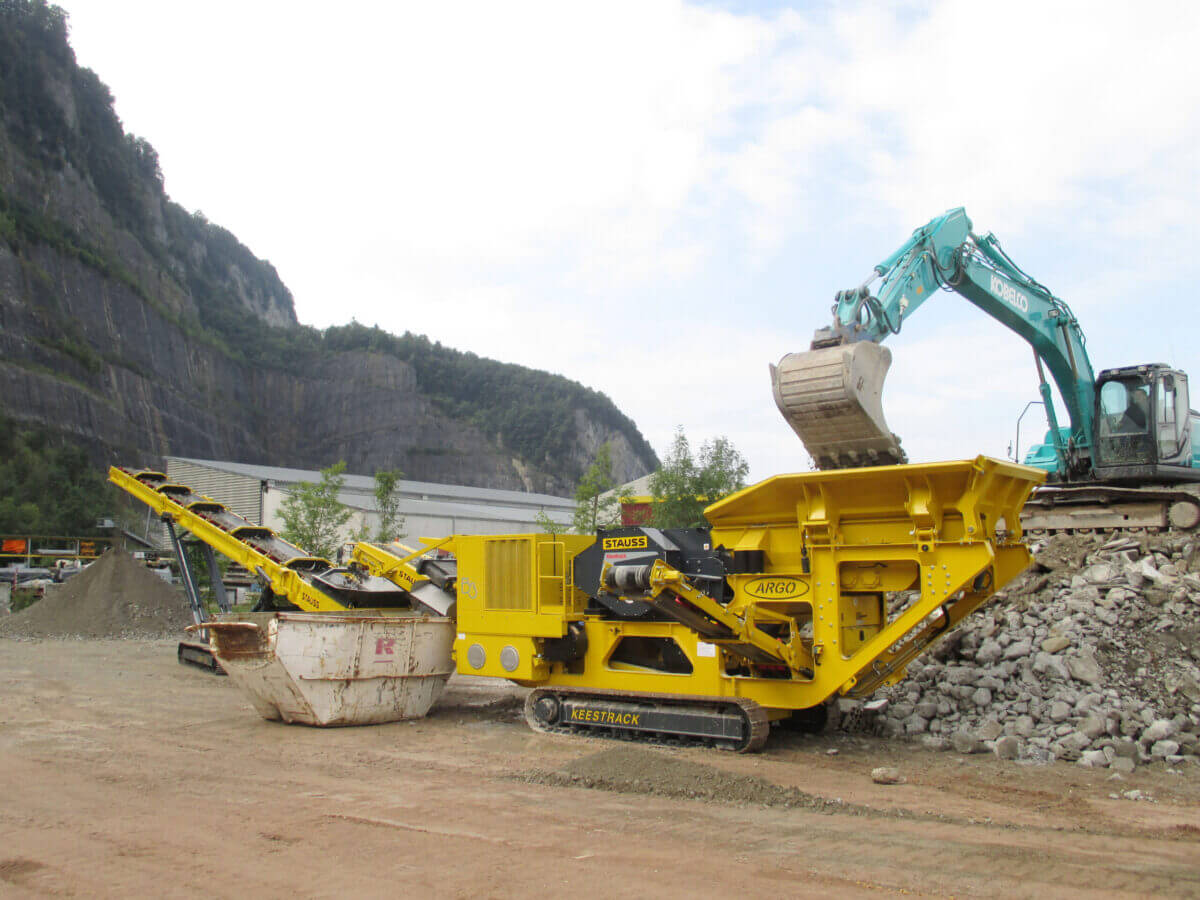

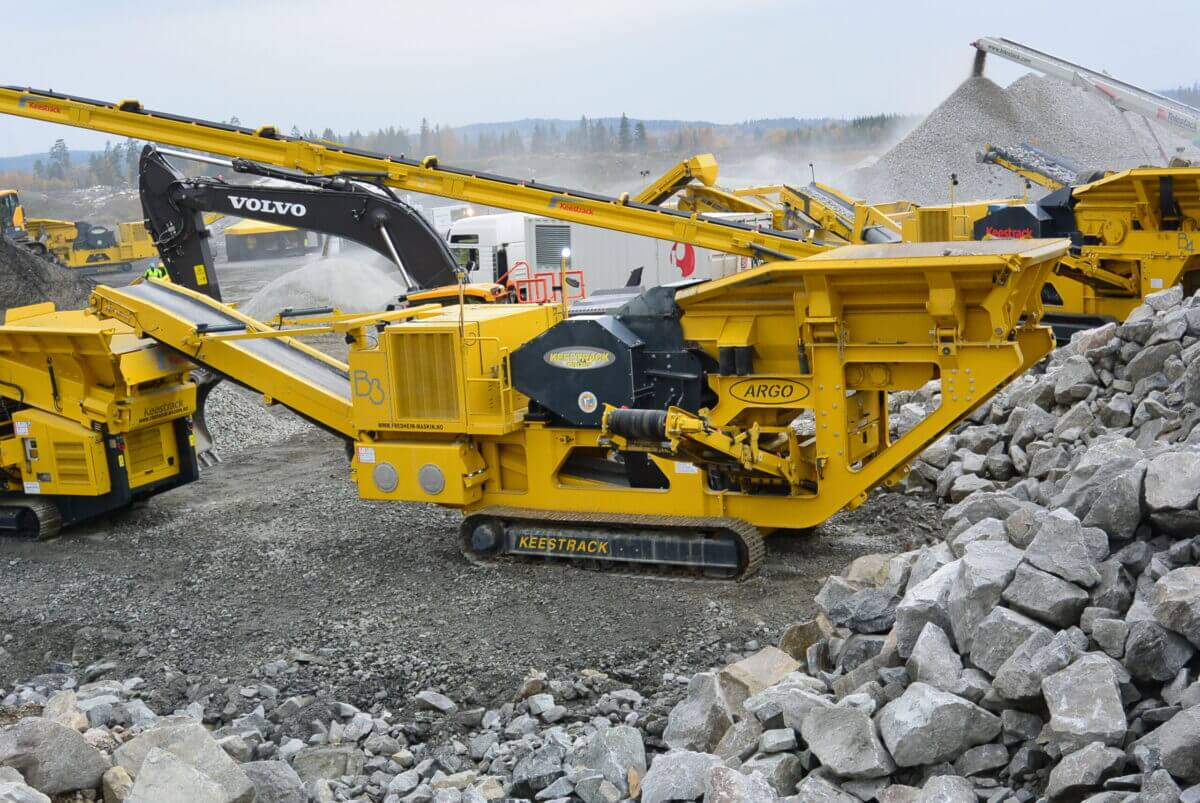

Jaw crusher Keestrack B3

Specifications

• Feed hopper

  Capacity – 4м3
  Wear lining – HB450
  Feeding height – 3.700 mm

• Vibrating Feeder

  Dimension (width x length) – 920 x 4.130 mm

• Pre-screen

  Screen type – Vibrating Feeder with scalper
  Dimension (width x length) – 920 x 1.730 mm

• Jaw crusher

  Inlet opening – 650 x 1.000 mm
  Maximum Feed size – 500 mm
  Outlet adjustment – 45-160 mm
  Throughput capacity – Up to 280 t/ h
  Drive – Hydraulic motor drive

• Mainbelt conveyor

  Dimension (width x length) – 800 x 8.800 mm
  Discharge height – 3.100 mm

• Track-unit

  Dimension (width x length) – 400 x 3.310 mm
  2 speeds – 1,1 /2 km/h

• Engine unit

  Power – 139 kW/ 1.500 rpm
  Fuel tank – 450 l
  Hydraulic oil tank – 430 l

• Control

  Type – PLC- IP67
  Display – 4,3″ LCD
  Controller – Remote control

• OPTION: Side pre-screen conveyor

  Dimension (width x length) – 500 x 4.500 mm
  Discharge height – 2.600 mm

• OPTION: Dust suppression system

  Spraying area – Crusher outlet and middle of main conveyor
  Water pump – 1,1 kW
  Water consumption – 0,75 m3 /h

• OPTION: Magnetic separator

  Height adjustment – Fixed or 150 – 350 mm adjustable

• OPTION: Fuel filling pump

  Flow capacity – 80 I/min

• OPTION: Mainbelt conveyor special belt

  Type – K – Flex 630 / 1

• OPTION: Radio remote control

  Type – Handheld, multi functions remote control

• OPTION: Working light

  No. of lamps – 4 pieces

• TRANSPORT DIMENSIONS AND WEIGHT

  Length: 12.500 mm
  Height: 3.100 mm
  Width: 2.540 mm
  Weight: 29 t without options
